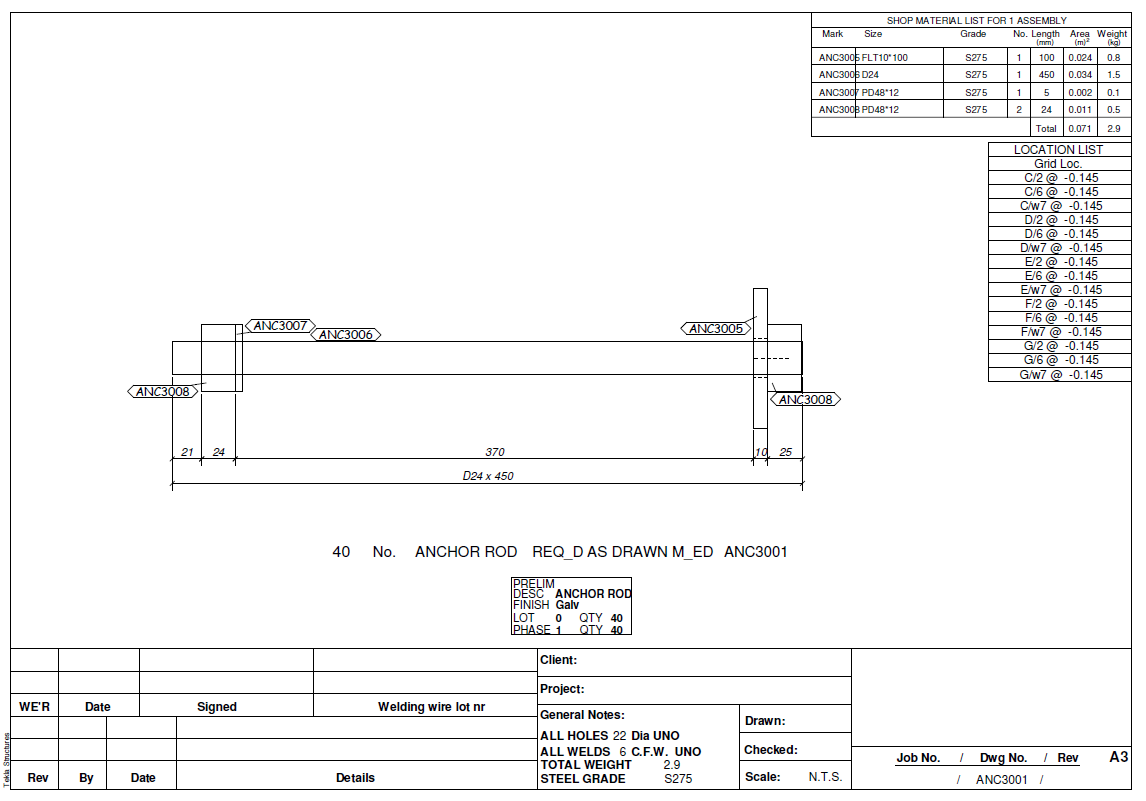

sample_ANC3001_anchor (1)
sample_ANC3001_anchor

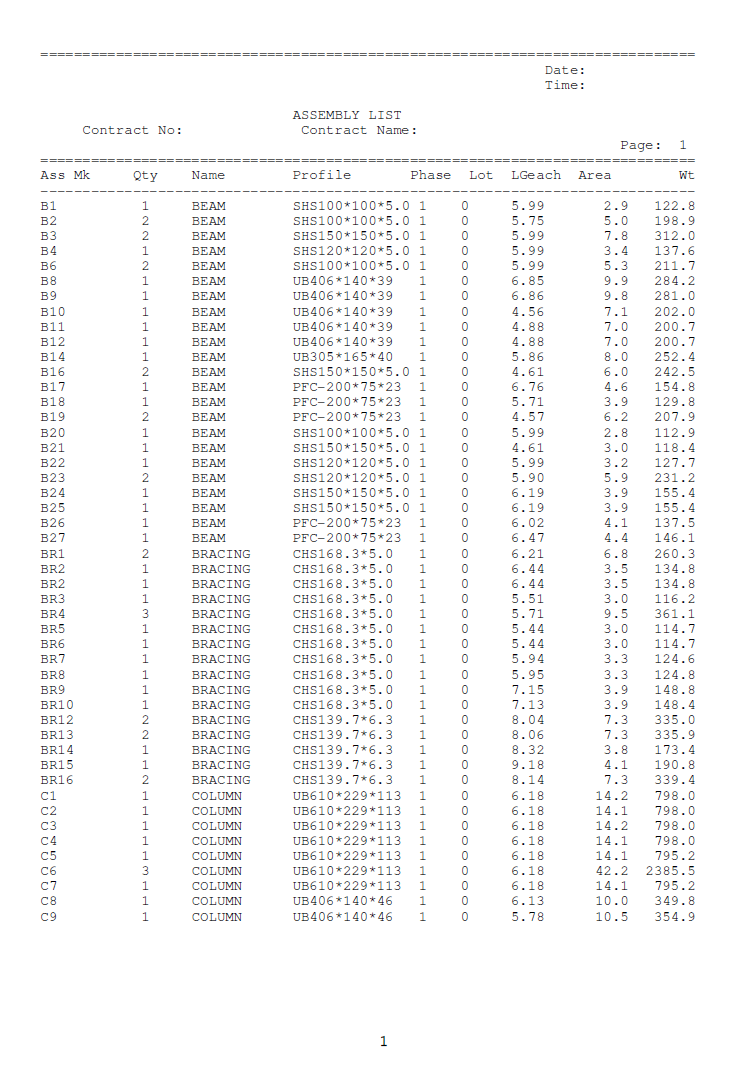

sample_assy_list_1

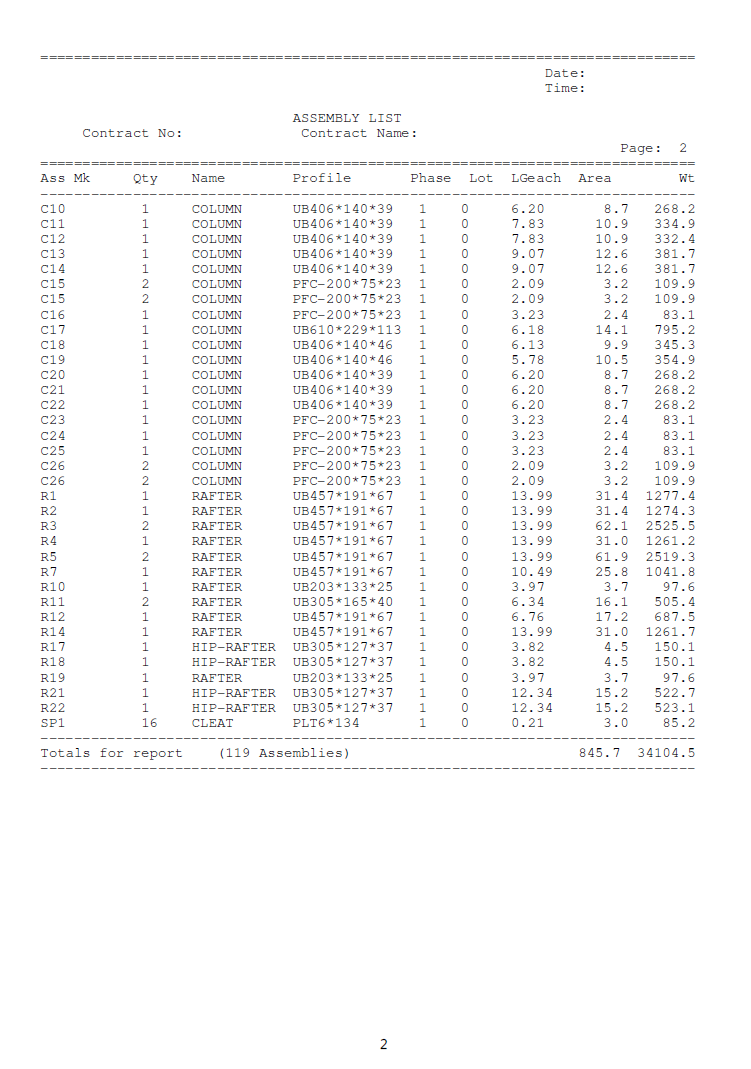

sample_assy_list_2

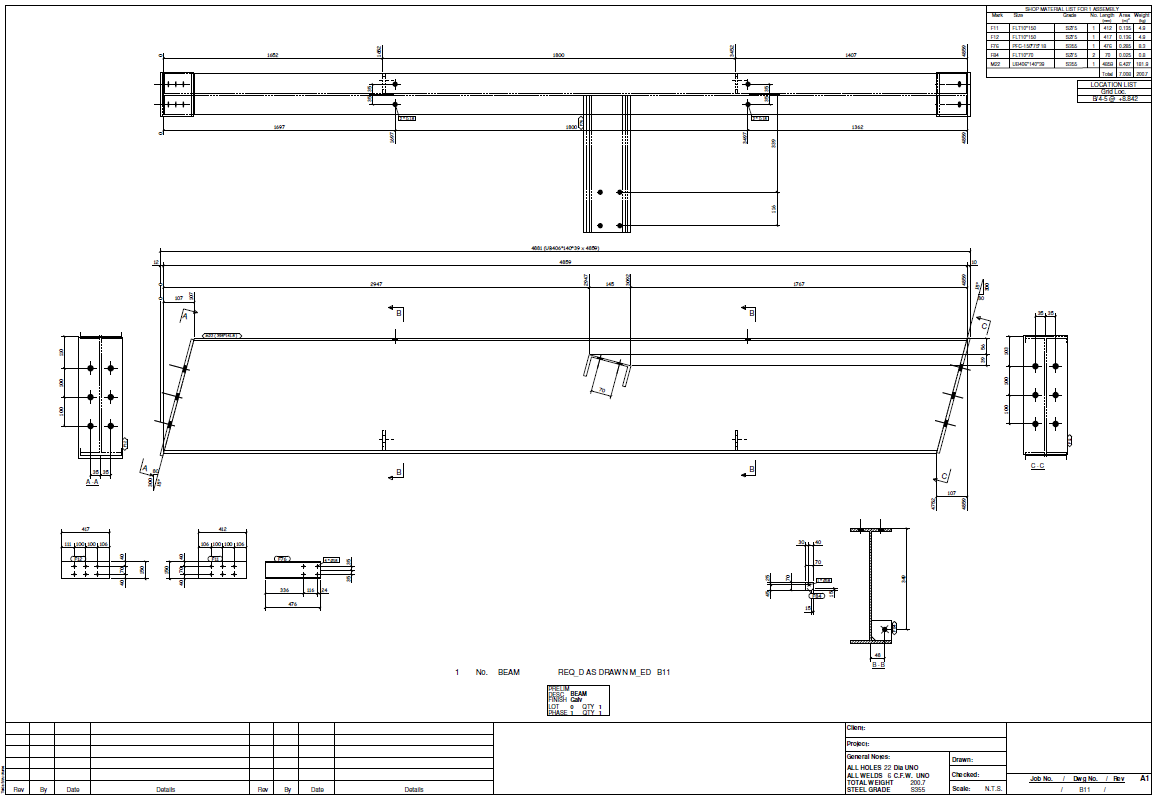

sample_B11_beam

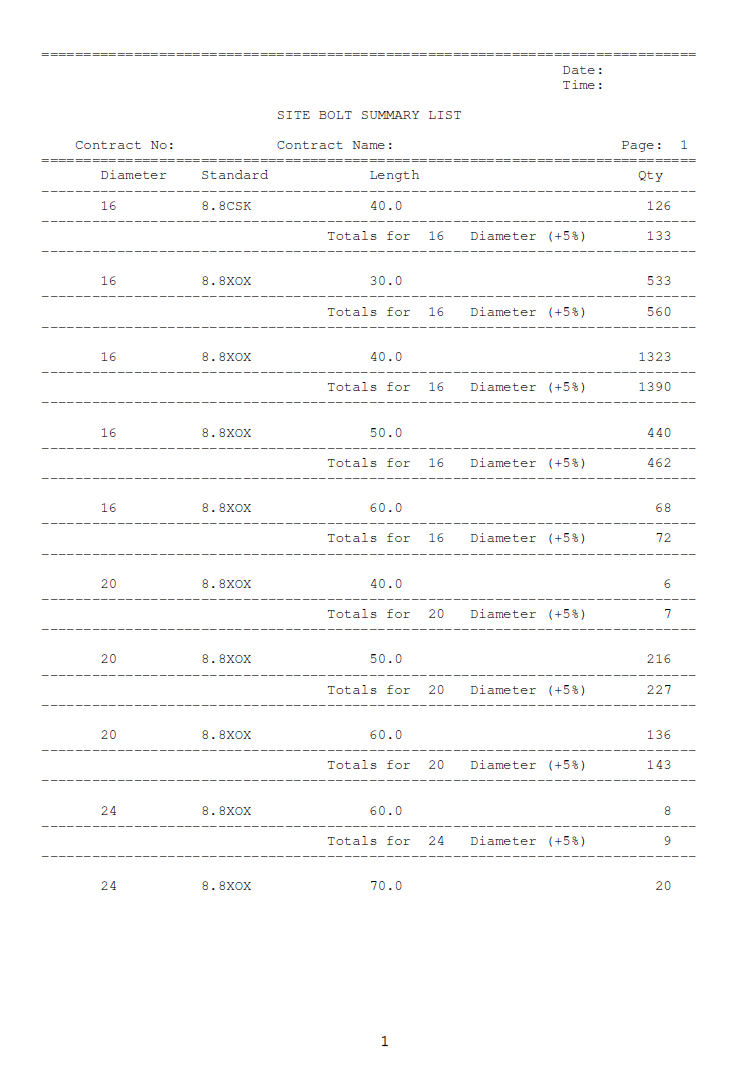

sample_bolt_list_1

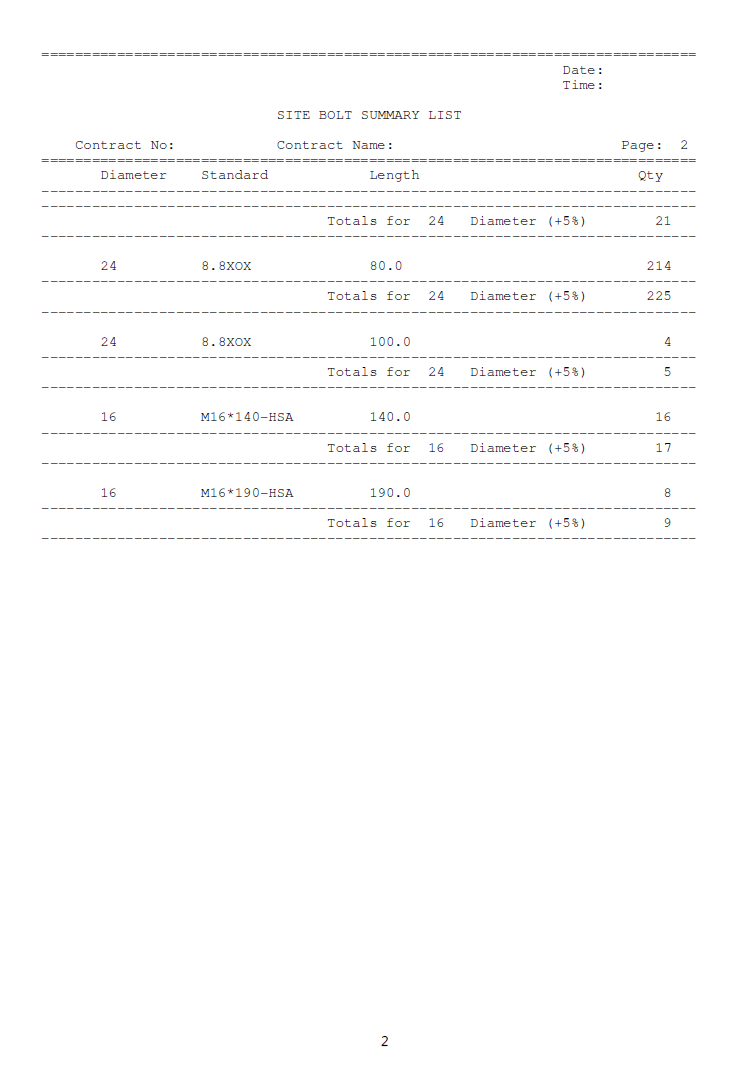

sample_bolt_list_2

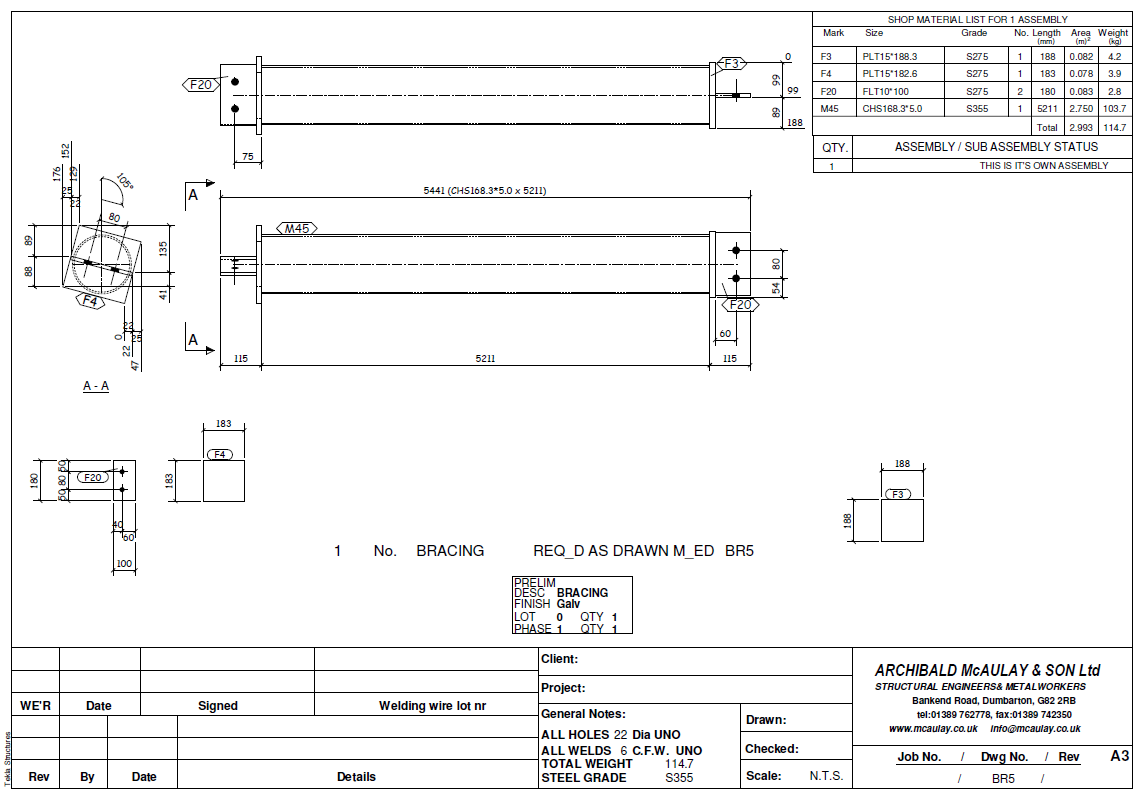

sample_BR5_brace

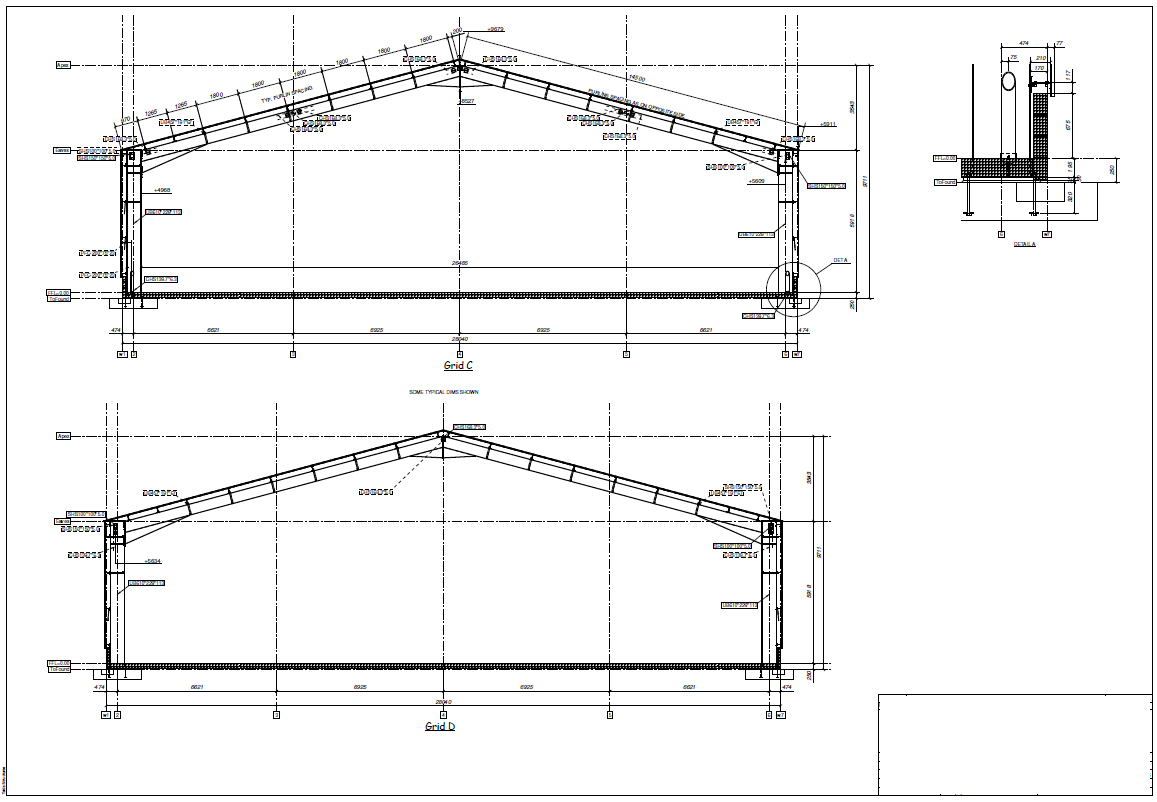

sample_G6_sections

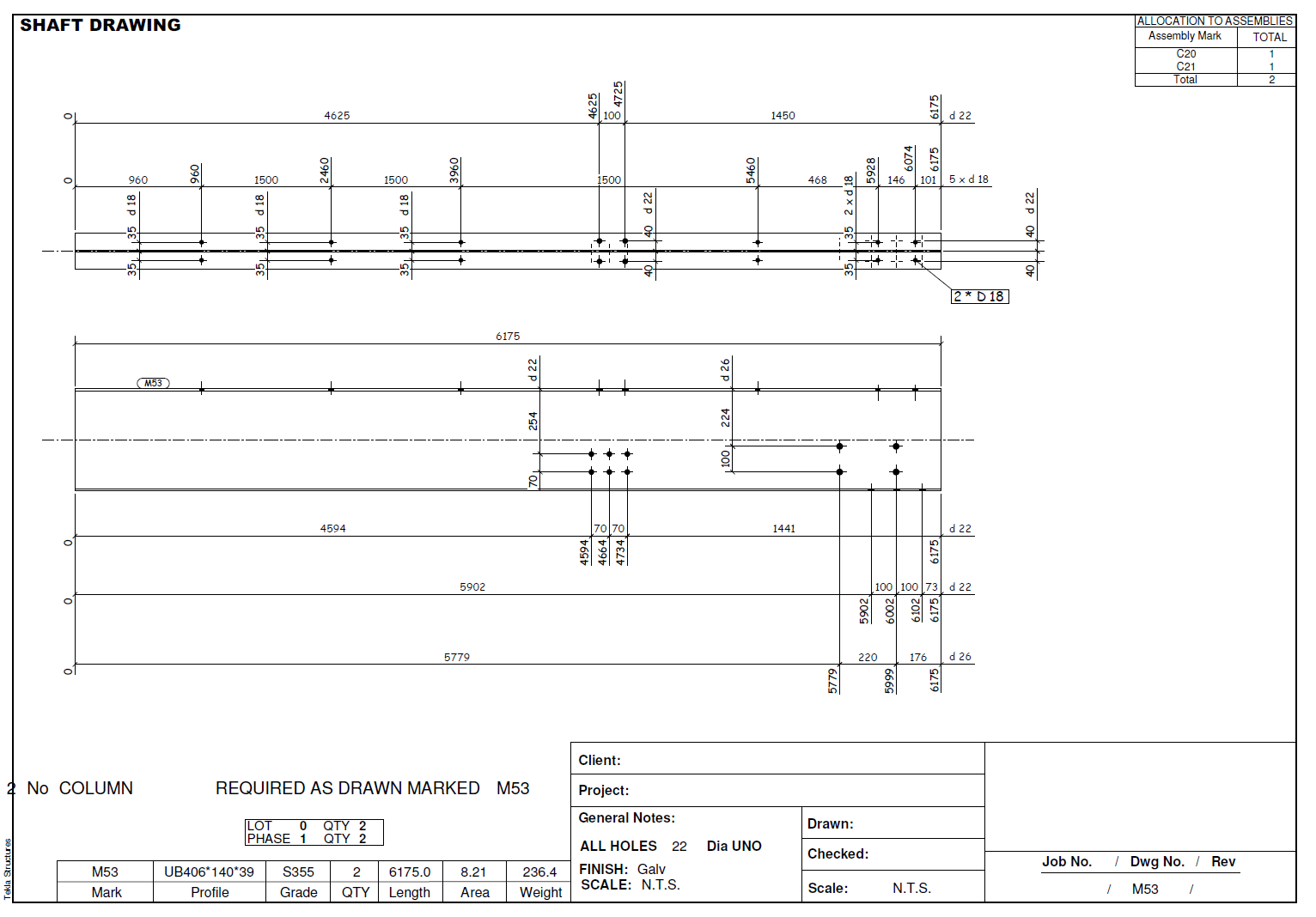

sample_M53_columnshaft

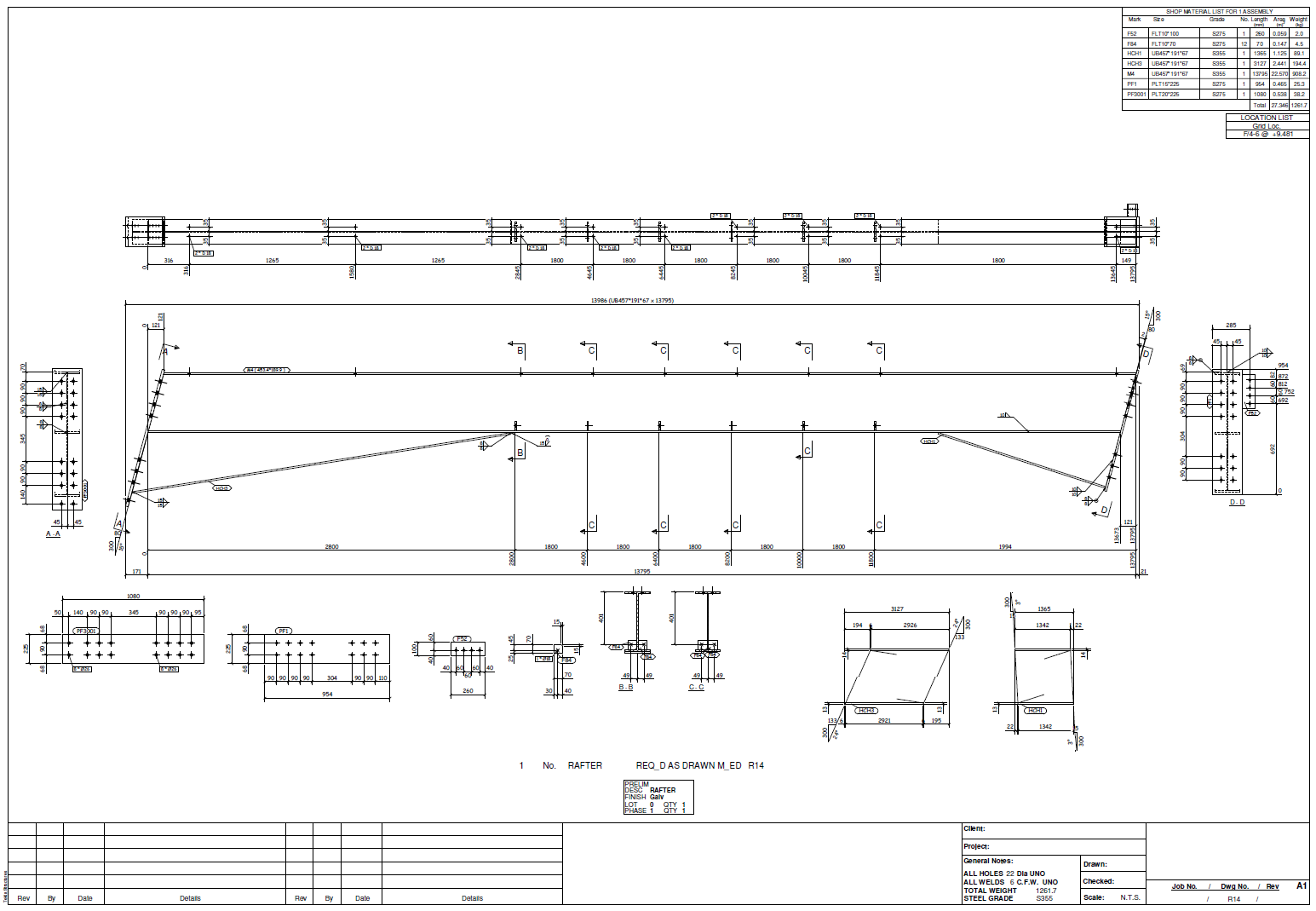

sample_R14_rafter

Industrial warehouse

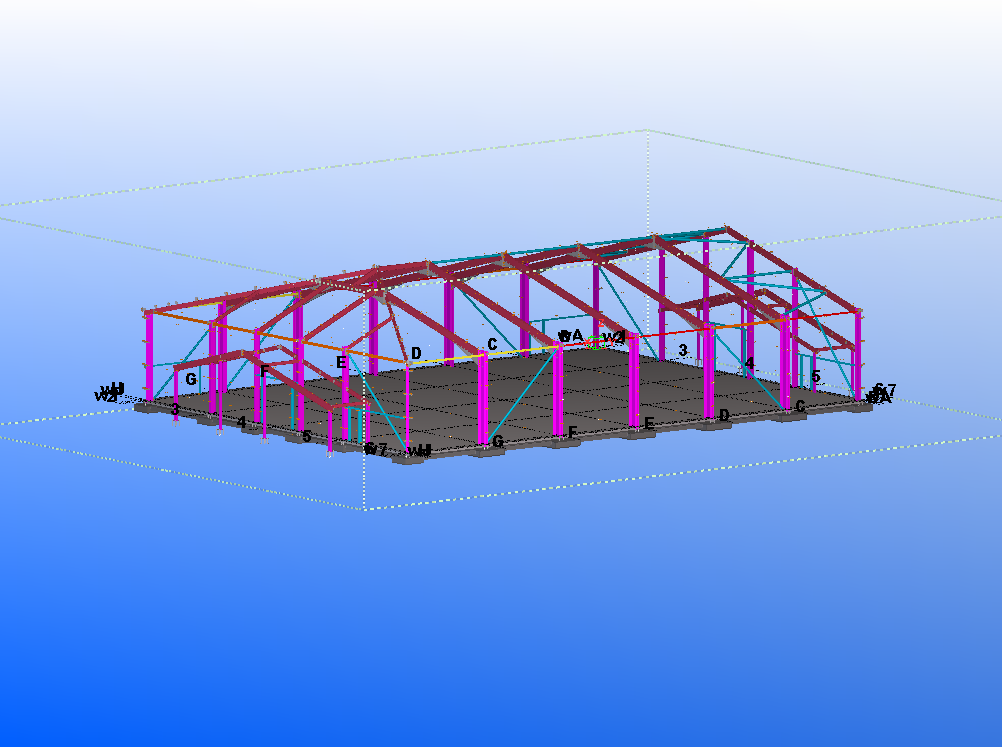

The building is a duo-pitch portal frame with hipped roof on one side, furnished with cold rolled purlins and side rails for.
  • dimensions: app. 65X60m wide and 13m -height to the apex
  • dimensions: app. 45 x 30m wide and 9.5m -height to the apex
  • primary steelwork: app. 40 tonnes
  • cold rolled purlines and side rails: 7.5 tonnes
  • bolts used: 4200#

CATEGORY:

DATE:

February 21, 2017
